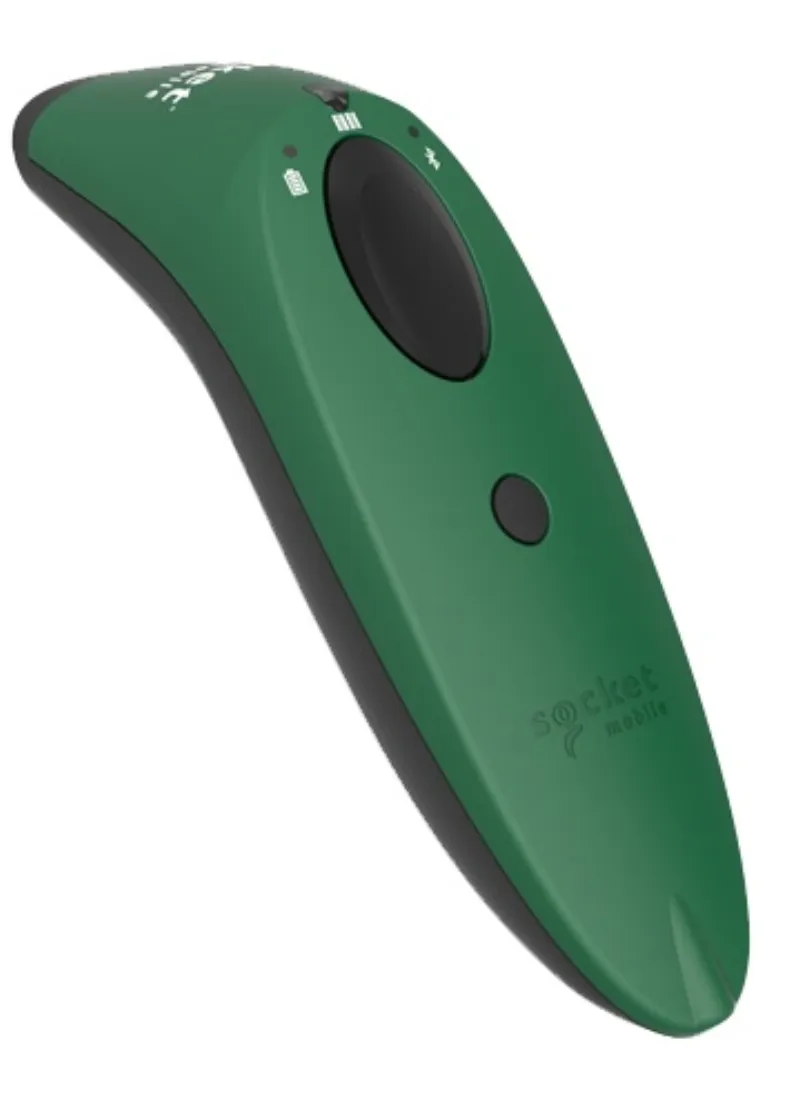

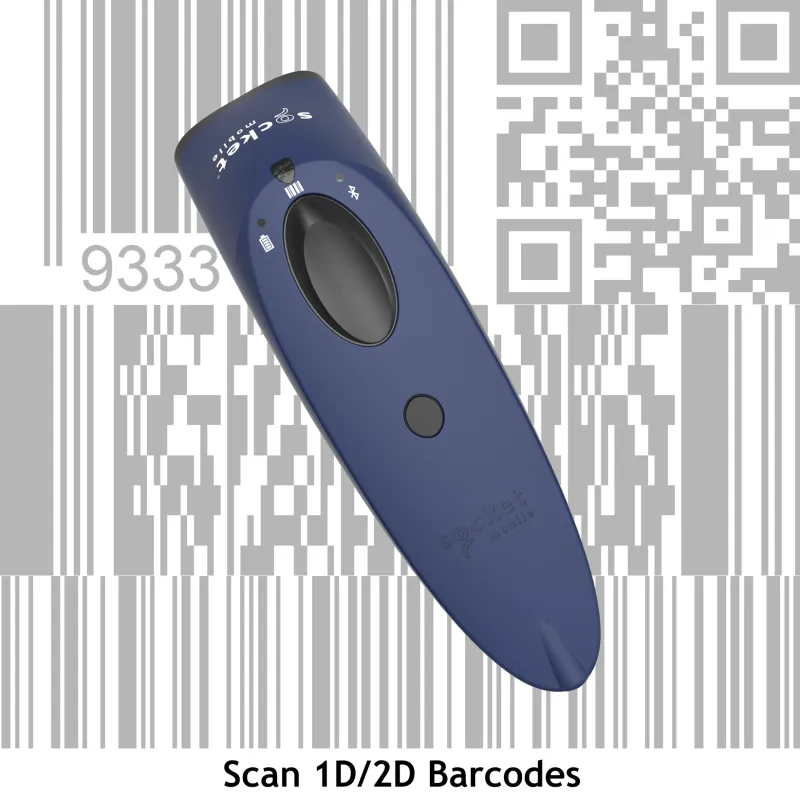

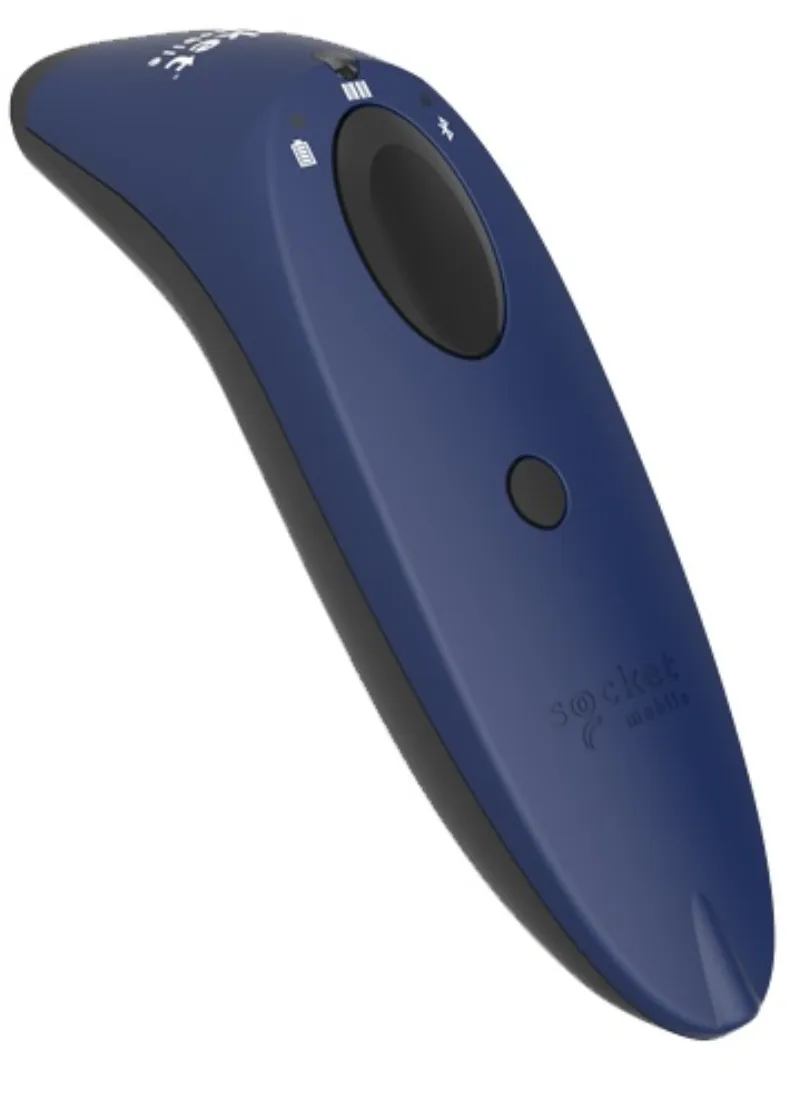

SOCKET SCANNER S740 BT 2D REDSOCKET SCANNER S740 BT 2D GREENSOCKET SCANNER S740 BT 2D BLUESOCKET SCANNER S740 BT 2D BLUE SocketScan® S740 2D/1D Imager Barcode ScannerSOCKET SCANNER S740 BT 2D BLUE SocketScan® S740 2D/1D Imager Barcode ScannerSocketScan® S740 2D/1D Imager Barcode Scanner


2D Bluetooth

Watch video

Barcode Scanner for Shopify, Vend, Square, ShopKeet, Teamwork Retail and many more systems.

Scanning Performance

Supported Barcode Symbologies:

1D Symbologies: Australia Post, Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, Composite CC-A/B, Composite CC-C, Composite TLC, Discrete 2 of 5, EAN-13/JAN, EAN-8/JAN, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, ISSN EAN, Matrix 2 of 5, MSI, UPC/EAN/JAN, UPC A, UPC EO
2D Symbologies: Aztec, Data Matrix, Maxicode, Micro PDF417, MicroQR, PDF417, QR Code

Scan Angle:
Horizontal: 42° (Default)
Vertical: 28°

Sensor Resolution:
640 horizontal x 400 vertical pixels

Print Contrast:
Down to 25%

Reading Distance:
4.5 to 49.5 cm (1.5 to 19.5 in.) Depends on barcode size, symbology, label media, Narrow and Wide ratio, scan angle

Power and Batteries

2 AA NiMH rechargeable batteries

Charge Time:
Approx. 6 hours

Battery Life - Per Full Charge:
Active Scan Time: 70,000 scans within 9 hours based on 2 scans every 1 second
                              17,000 scans within 19 hours based on 1 scan every 4 seconds

Note: Battery life varies depending on ambient temperature, ambient light, and age of battery.


Ambient Light:
From 0 to 100 000 lux, From pitch black to direct sun light

Operating Temperature:
0° to 45° C (32° to 113° F)

Storage Temperature:
-40° to 70° C (-40° to 158° F)

Relative Humidity:
95% at 60° C (140° F) (non-condensing)

Drop Specifications:
4 ft. drop to linoleum

Wireless Communications

Bluetooth Radio:
Class 2 Bluetooth, version 2.1 + EDR (Enhanced Data Rates) with 56-bit data encryption

Bluetooth Range:
Up to 10 m (33 ft.) depending on environment, range limit is usually due to the Host Device (phone, tablet or notebook)

Bluetooth Profiles:
Basic Mode - Human Interface Device (HID)*, Application Mode - Serial Port Profile (SPP) and Application Mode - MFi-SPP. Some Operating Systems or smartphone/tablet models may support only one profile.
*By default, the scanner is set to Basic Mode (HID). No software installation required.

Single Pack Includes

  • S740 Barcode Scanner

  • Rechargeable Battery

  • USB A Male to DC Plug Cable

  • Wrist Strap
