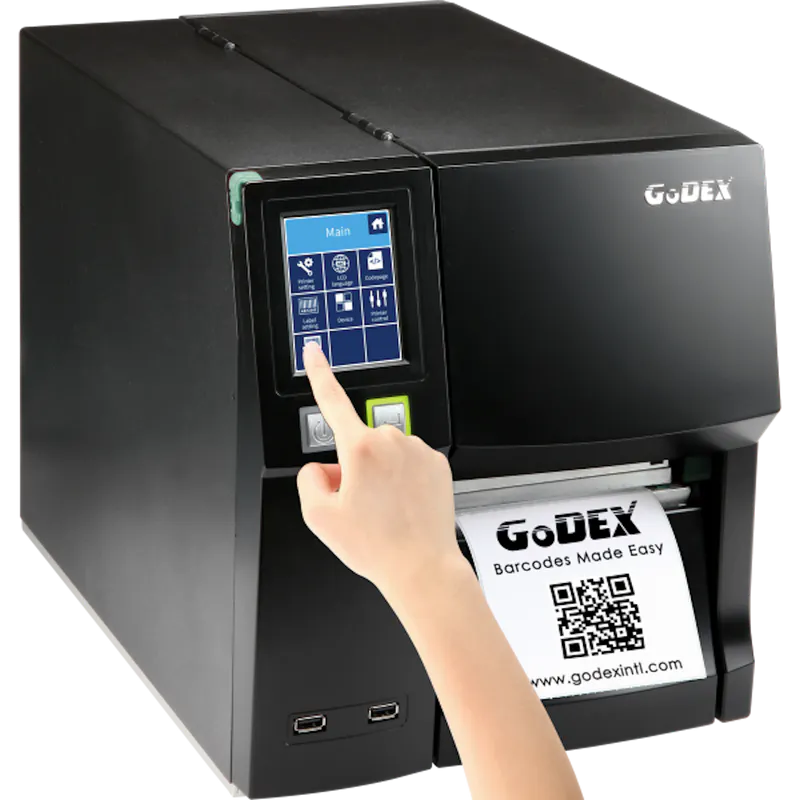

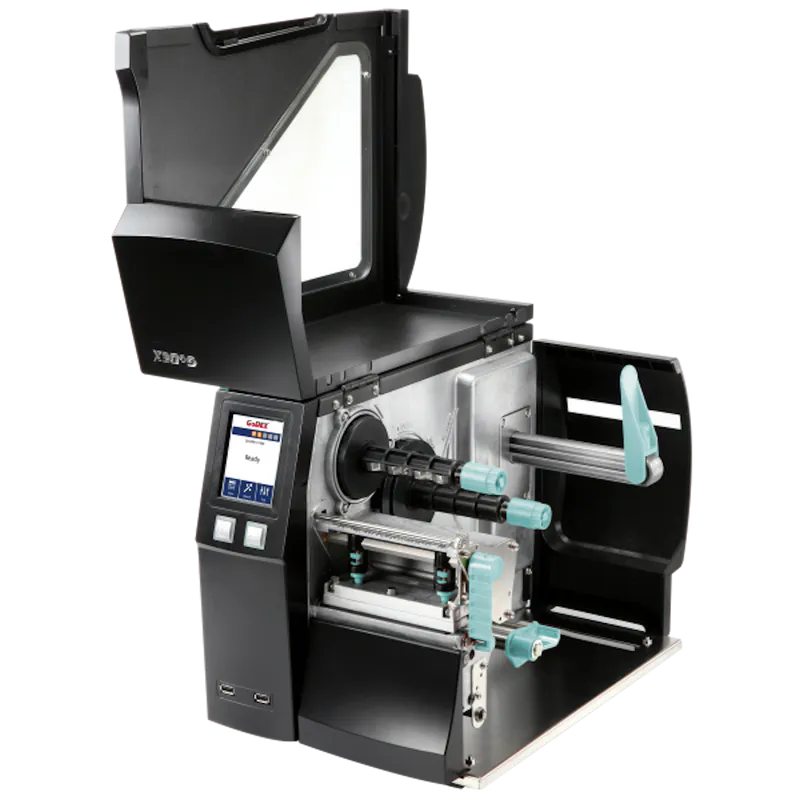

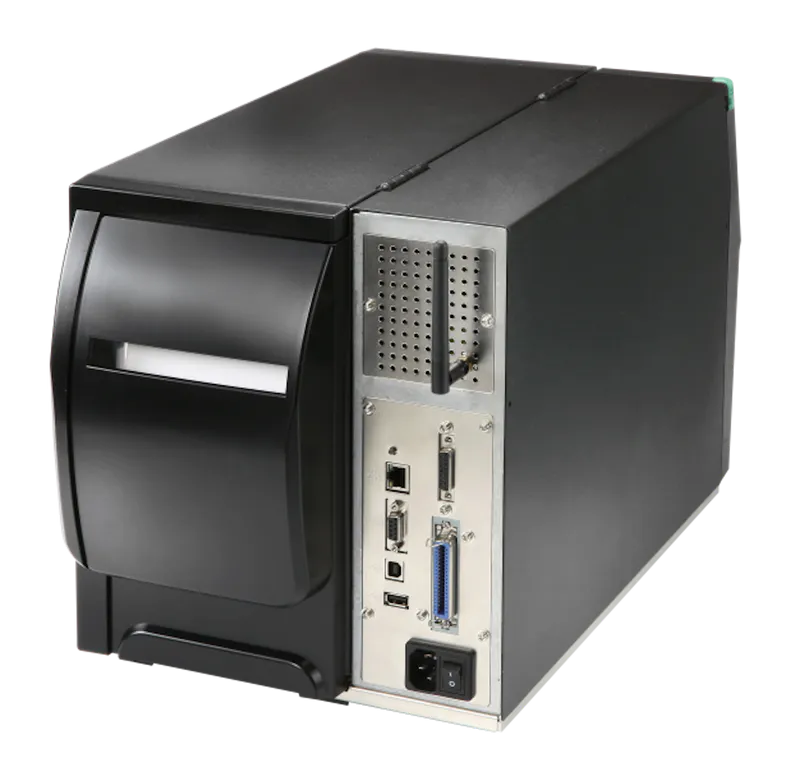

Godex ZX1300i Industrial Printer

Description:

The Rise of Automation, ZX1000i+ is the Selection.
The ZX1000i+ series is equipped with an effective and robust print mechanism, designed and built for high-volume industrial printing jobs, and suitable for any segment in the production chain.

Download Brochure for product - Click here for Brochure Godex ZX1300I

Download User Manual - Click here for User Manual Godex ZX1300I

Features:

• 300 DPI
• All-Metal Frame Structure
• User-Friendly Interface
• Multiple Interfaces for Maximum Connectivity
• Various Output Options
• Supports High-volume Printing Jobs
• Easy Maintenance
• Full Range Adjustable Media Sensors



Specifications:

Print Method:	Thermal Transfer (TT) / Direct Thermal (DT)
Resolution:	300 dpi (12 dot/mm)
Print Speed:	Up to 178 mm/Sec (7 IPS)
Print Width:	104 mm up to 105.7 mm (4.09”)
Print Length:	Min. 3 mm (0.12”) ; Max. 3200 mm (125.98”)
Processor:	32 Bit RISC CPU
Memory:	Flash 256 MB SDRAM 256 MB
Interfaces:	USB 2.0 (Type B) Serial Port (RS232) Ethernet 10/100 Mbps 3 USB Host (Type A). 2 ports at the front panel, 1 port at the rear panel
Ribbon:	Width 110 mm (30 mm Min) | Length Max. 450 m | Ribbon roll diameter 76.2 mm | Core diameter 25.4 mm
Control Panel:	Backlight 3.2” touch screen LCD 1 Power on/off button with green colour LED backlight 1 Control key: FEED/PAUSE/CANCEL with dual colour LED backlight: Ready(Green); Error(Red) 1 Calibration button at rear panel
