GoDex ZX1200i Industrial Printer

Description:

The Rise of Automation, ZX1000i+ is the Selection.
The ZX1000i+ series is equipped with an effective and robust print mechanism, designed and built for high-volume industrial printing jobs, and suitable for any segment in the production chain.



Features:

• All-Metal Frame Structure
• User-Friendly Interface
• Multiple Interfaces for Maximum Connectivity
• Various Output Options
• Supports High-volume Printing Jobs
• Easy Maintenance
• Full Range Adjustable Media Sensors



Specifications:

Print Method:	Thermal Transfer / Direct Thermal
Resolution:	203 dpi (8 dots/mm)
Print Speed:	Up to 10 IPS (254 mm/s)
Print Width:	4.09” (104 mm, up to 108mm)
Print Length:	Min. 0.16” (4 mm)**;Max. 279.53” (7100 mm) / Min. 0.16” (4 mm)**;Max. 125.98” (3200 mm) / Min. 0.16” (4 mm) Max. 31.5” (800 mm)
Processor:	32 Bit RISC CPU
Memory:	Flash 256 MB SDRAM 256 MB

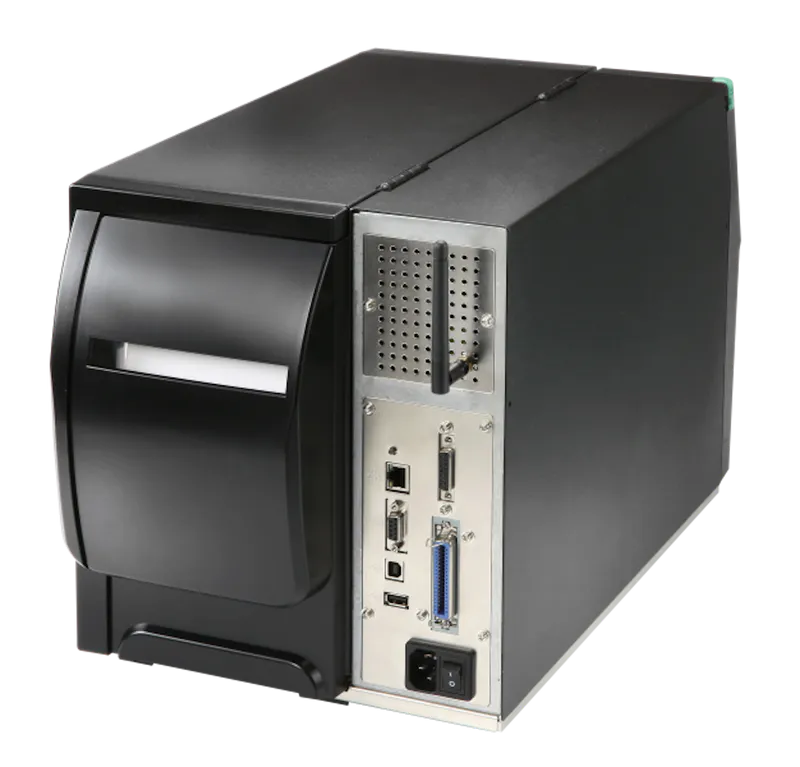

Interfaces:	• USB 2.0 (Type B) • Serial Port (RS232) • Ethernet 10/100 Mbps • 3 USB Host (Type A). 2 ports at the front panel, 1 port at the rear panel

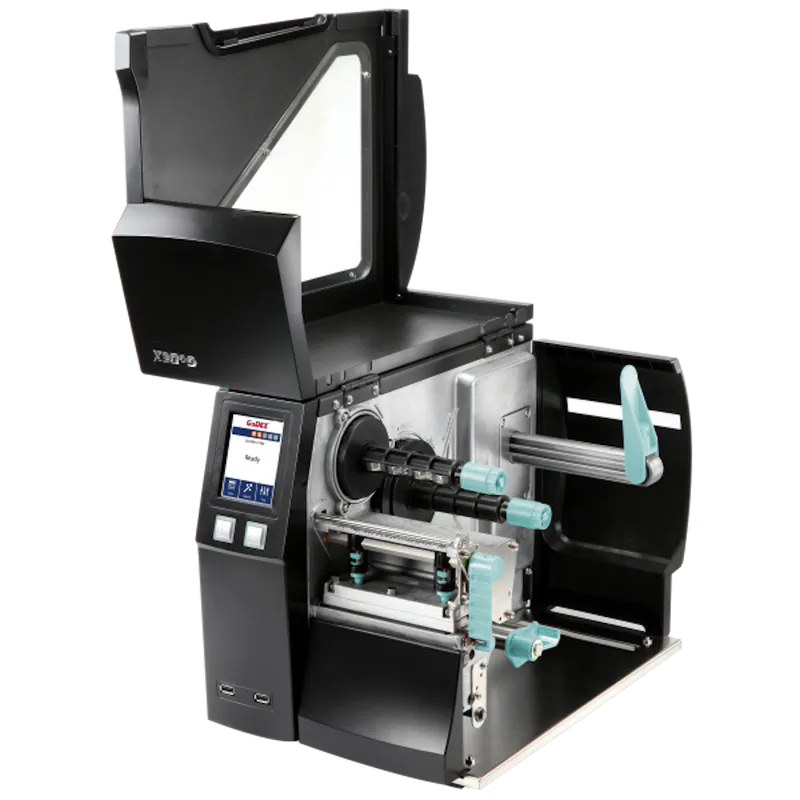

Ribbon:	• Length Max. 1476’ (450 m) • Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm) • Ribbon roll diameter 3” (76.2 mm) • Core diameter 1” (25.4 mm)

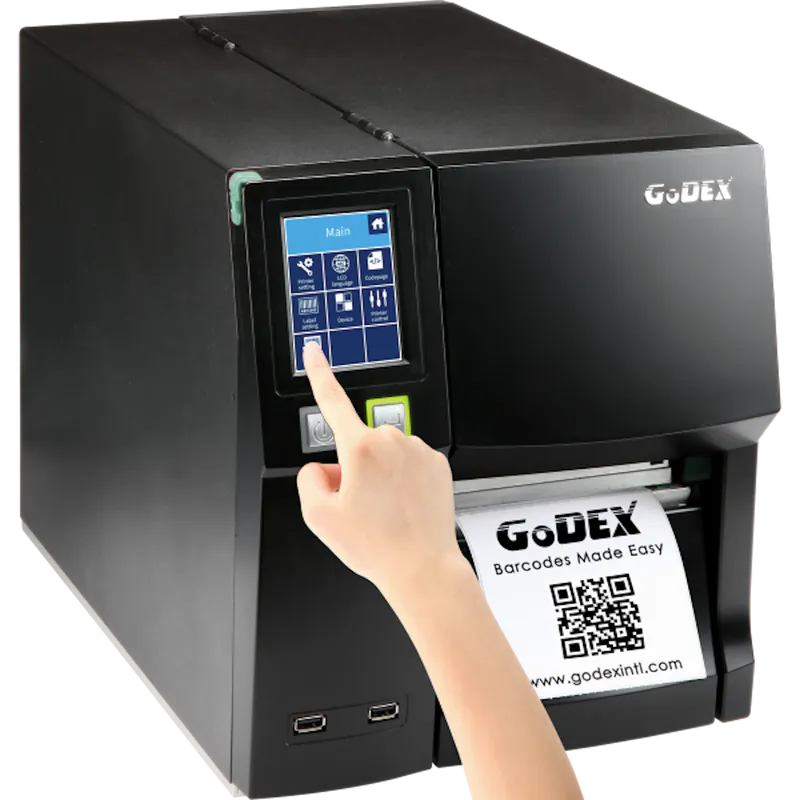

Control Panel:	• Backlight 3.2” touch screen LCD • 1 Power on/off button with green colour LED backlight • 1 Control key: FEED/PAUSE/CANCEL with dual colour LED backlight: Ready(Green); Error(Red) • 1 Calibration button at rear panel
