GoDex EZ2250i Industrial Printer

Description:

GoDex EZ2250i an enhanced mid-range industrial printer for most applications with an all metal mechanism design featuring die-cast center plane and base make the GoDEX EZ2250i series perfect for high volume applications.

Download Brochure for product - Click here for Brochure Godex EZ2250I

Download User Manual - Click here for User Manual Godex EZ2250I



Features:

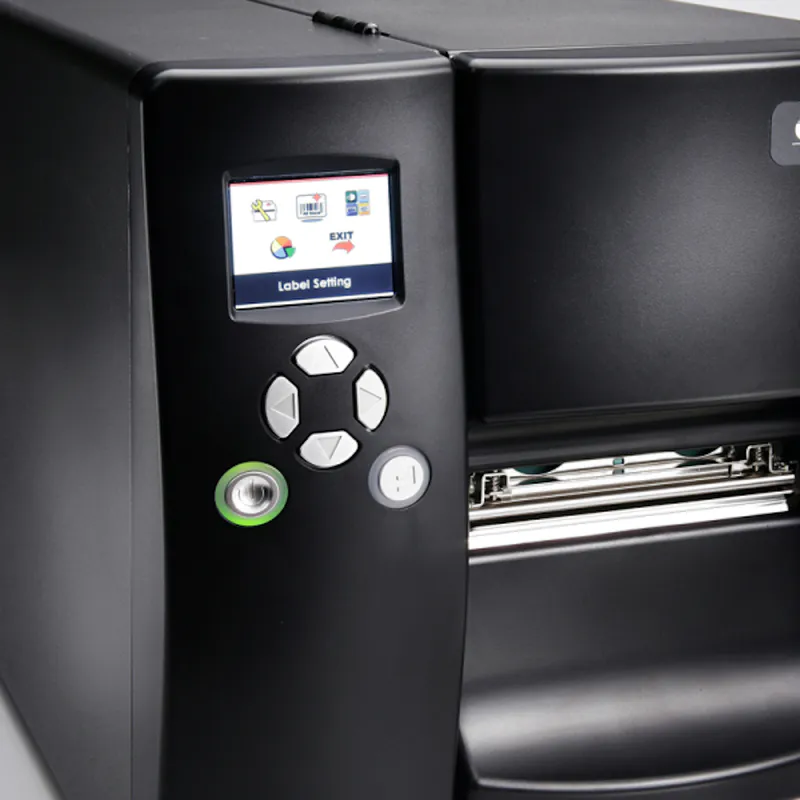

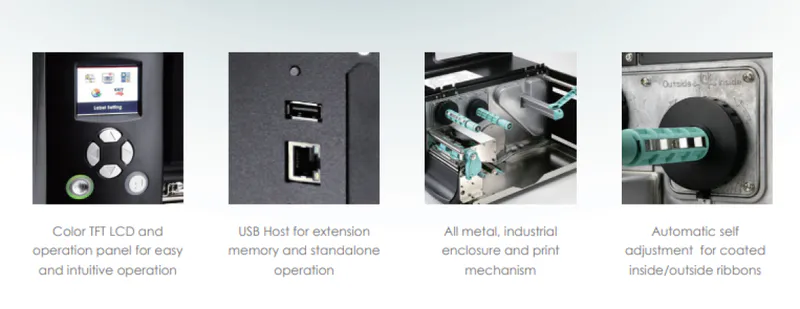

• Color TFT LCD and operation panel for easy and intuitive operation
• USB Host for extension memory and standalone operation

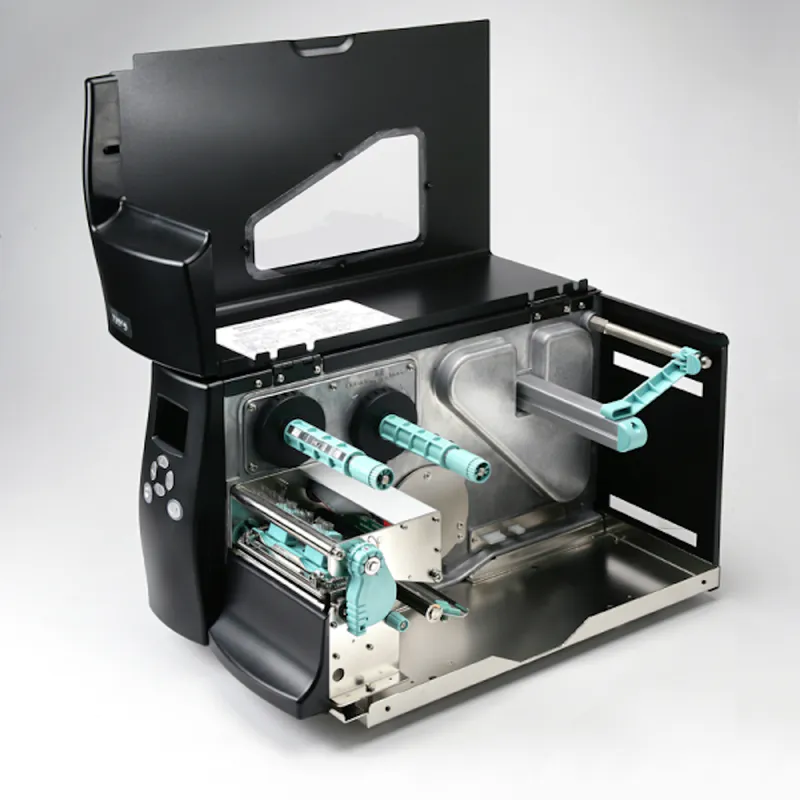

• All metal, industrial enclosure and print mechanism
• Automatic self-adjustment for coated inside/outside ribbons



Specifications:

Print Method:	Thermal Transfer (TT) / Direct Thermal (DT)
Resolution:	203 dpi (8 dots/mm)
Print Speed:	177 mm/sec (7 ips)
Print Width:	104 mm (4.09”)
Print Length:	Min. 4 mm (0.16”) ; Max. 2540 mm (100”)
Processor:	32-bit RISC CPU
Memory:	Flash: 8 MB Flash (4 MB for user storage), SDRAM : 16 MB

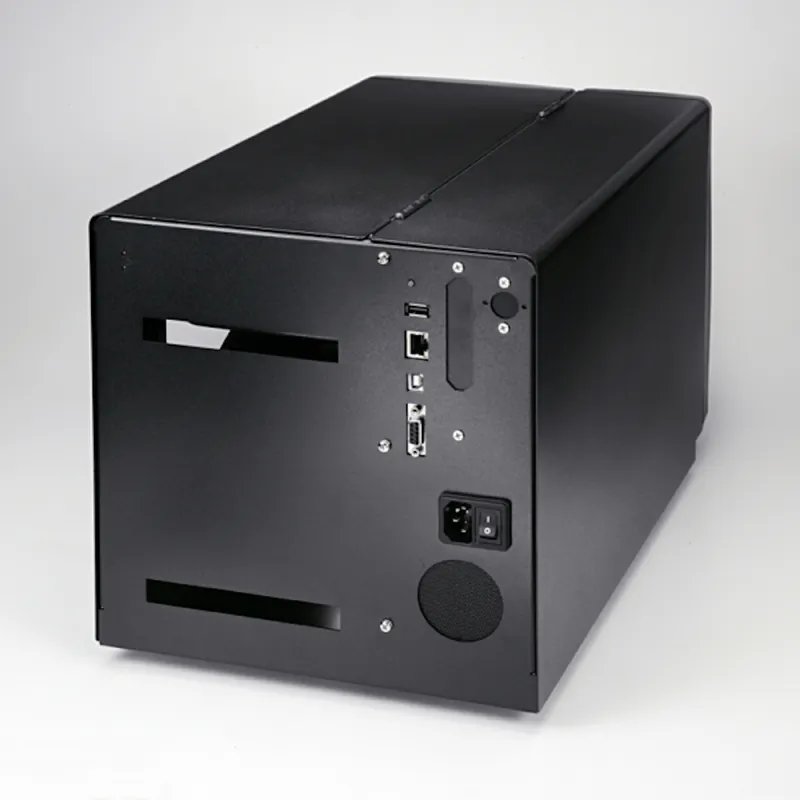

Interfaces:	USB 2.0 (B-Type) Serial port: RS-232 (DB-9) Ethernet port (RJ-45) Optional Bluetooth or WiFi Module
Ribbon:	Width: 110 mm (30 mm Min) | Length: 450 m | Core diameter: 25.4 mm
Control Panel:	Color TFT LCD with navigation button Calibration button Control keys: FEED Power on/off button
