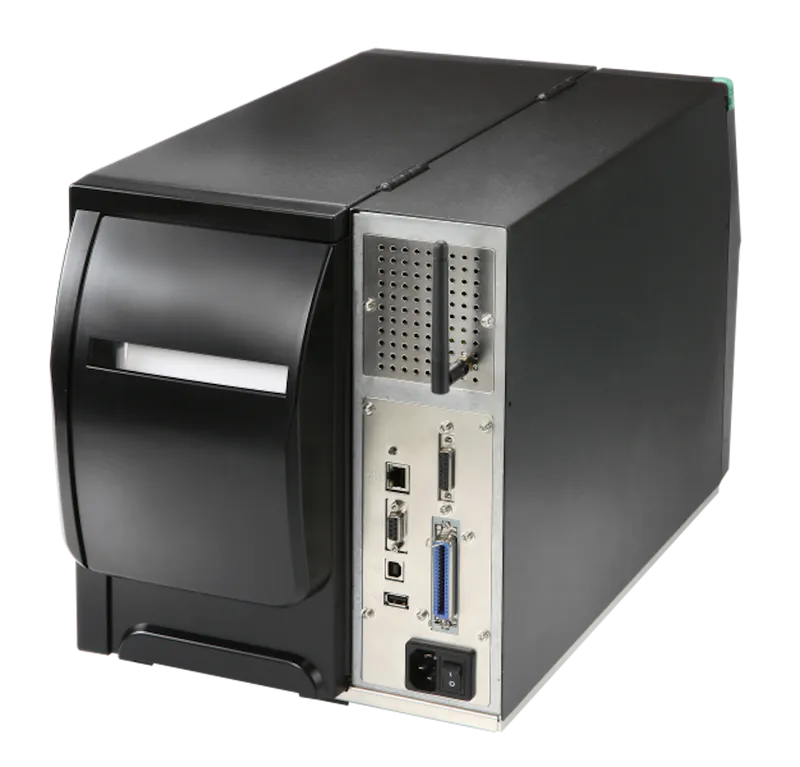

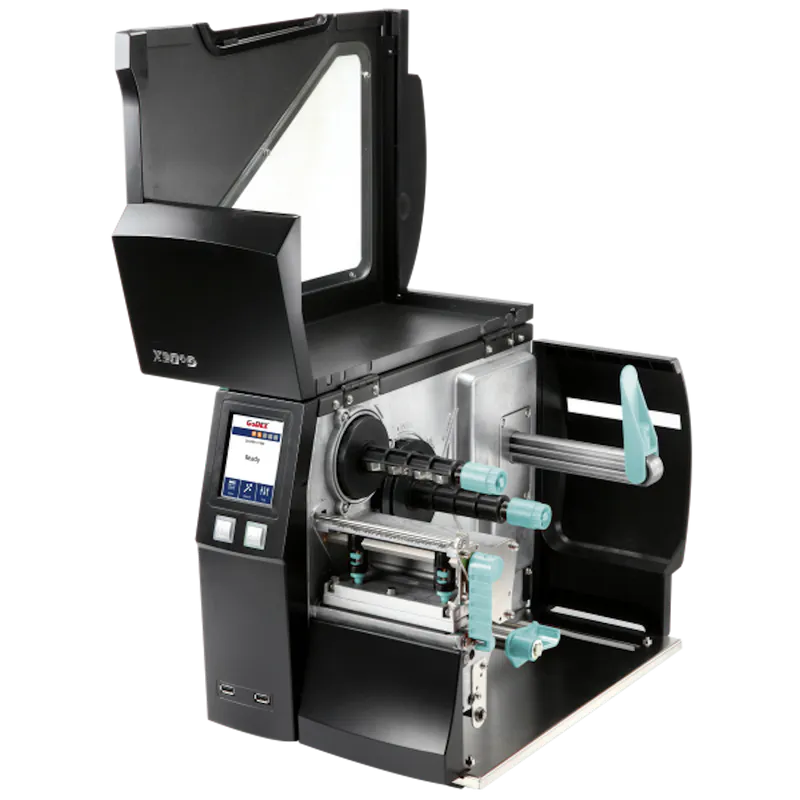

Godex ZX1600i Industrial Printer

4" Wide 600 DPI

A compact 600 DPI Industrial Printer. The Rise of Automation, ZX1000i+ is the Selection.




$3,149.00 NZDex GST



The Rise of Automation, ZX1000i+ is the Selection.
The ZX1000i+ series is equipped with an effective and robust print mechanism, designed and built for high-volume industrial printing jobs, and suitable for any segment in the production chain.

Download Brochure for product - Click here for Brochure Godex ZX1600I

Download User Manual - Click here for User Manual Godex ZX1600I


  • All-Metal Frame Structure
  • User-Friendly Interface
  • Multiple Interfaces for Maximum Connectivity
  • Various Output Options
  • Supports High-volume Printing Jobs
  • Easy Maintenance
  • Full Range Adjustable Media Sensors



Print Method: Thermal Transfer (TT) / Direct Thermal (DT)
Resolution: 600 dpi (24 dots/mm)
Print Speed: Up to 102 mm/Sec (4 IPS)
Print Width: 104 mm, up to 105.6 mm
Print Length: Min. 4 mm (0.16”) Max. 800 mm (31.5”)
Processor: 32 Bit RISC CPU
Memory: Flash 256 MB SDRAM 256 MB
  • USB 2.0 (Type B)
  • Serial Port (RS232)
  • Ethernet 10/100 Mbps
  • 3 USB Host (Type A). 2 ports at the front panel, 1 port at the rear panel
Ribbon: • Width 110 mm (30 mm Min) | Length Max. 450 m | Ribbon roll diameter 76.2 mm | Core diameter 25.4 mm
Control Panel:
  • Backlight 3.2” touch screen LCD
  • 1 Power on/off button with green colour LED backlight
  • 1 Control key: FEED/PAUSE/CANCEL with dual colour LED backlight: Ready(Green); Error(Red)
  • 1 Calibration button at rear panel

Media Loading
