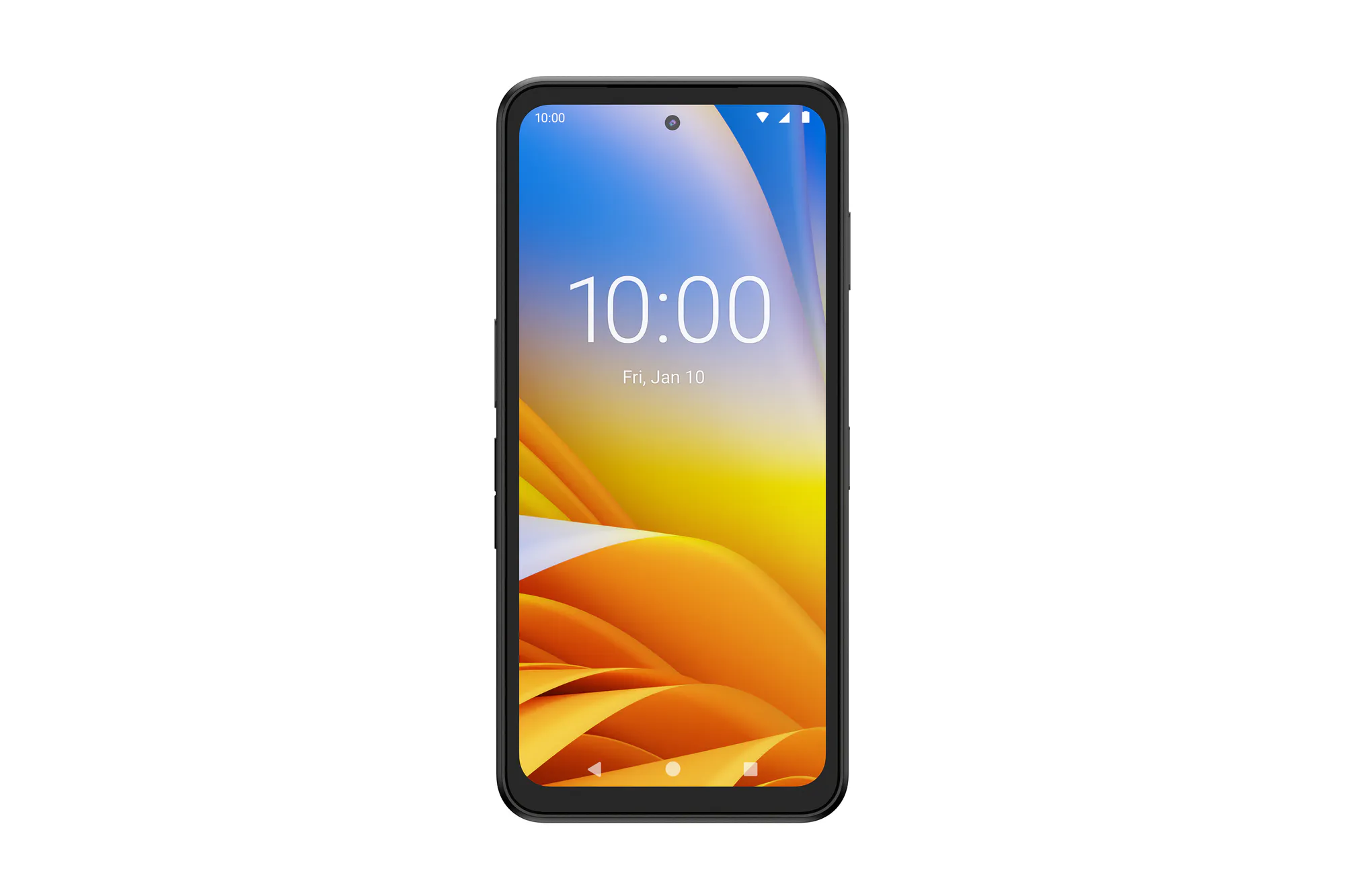

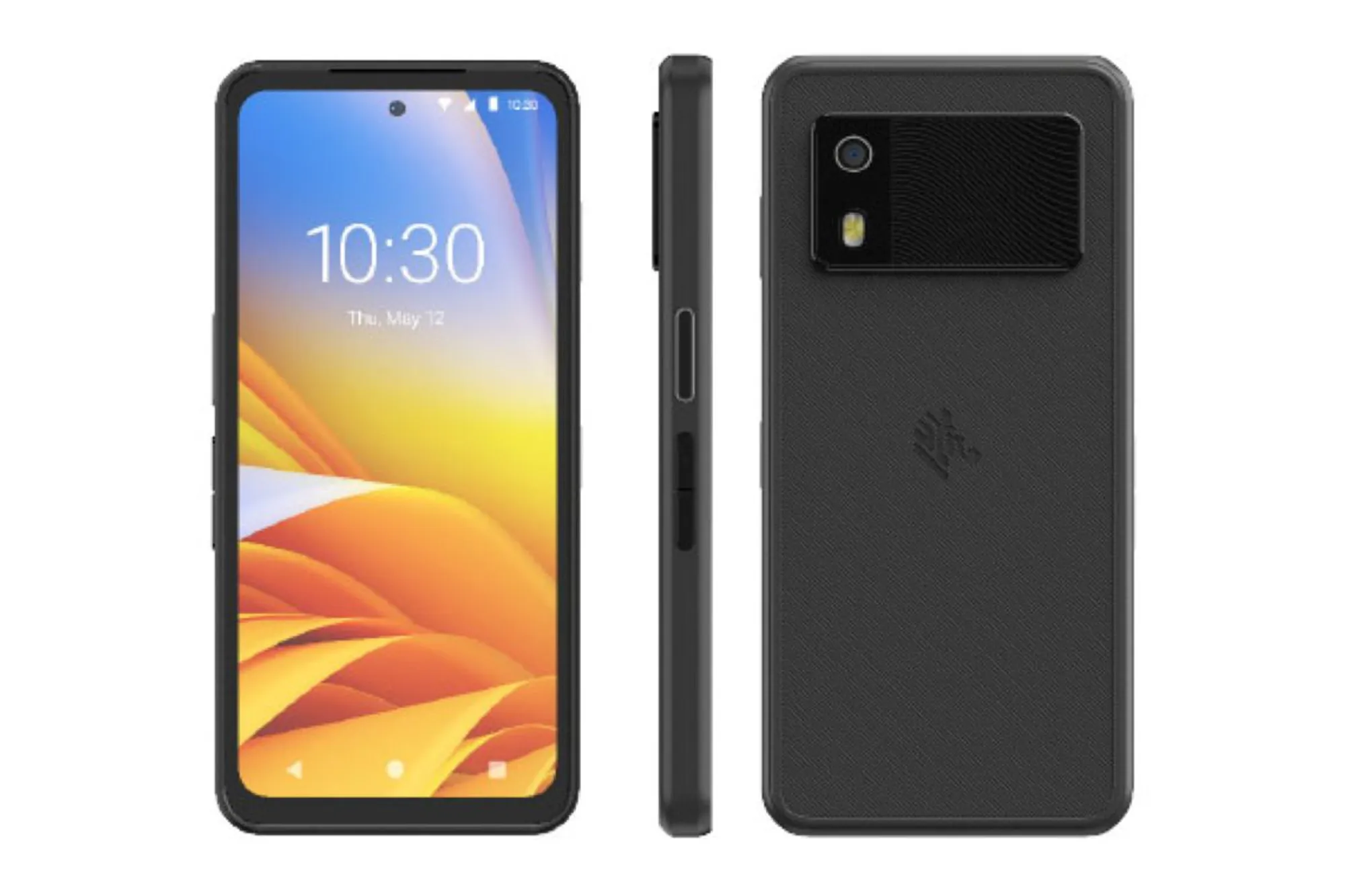

EM45 RFID

RFID

Productivity and convenience to the frontline. Built with Zebra DNA, the all-in-one, AI-capable EM45 RFID offers precise RFID reads, a high-performance camera, 5G and Wi-Fi 6E, and a fast-charging, long-lasting battery built for the demands of the modern enterprise.

SKU

EM45/RFID

Price

$2,349.00 NZDex GST

Quantity

The Zebra EM45 RFID Enterprise Mobile puts the power of Zebra in your pocket, delivering unmatched productivity and convenience to the frontline.

The robust System-on-Chip (SOC) with a dedicated neural processing unit (NPU) provides the power to make advanced AI capabilities a reality for on-the-go workers. You can run small language models for translation or transcription; utilize AI vision models to examine shelves, products, labels, and text; 3D measurement tools; and enable generative AI assistants

EM45 RFID is built to withstand the durability test of time. This device is drop-tested, tumble-tested, waterproof and able to withstand extreme temperature swings. The result is a device built to last for years — with an enterprise-grade return on investment.

Commonly Used For

  • Asset Tracking
  • Work in Progress
  • Track and Trace
  • Sorting
  • Inventory Management



Physical Characteristics

Dimensions 6.72 in L x 3.17 in W x .42 in D
(170.65mm L x 80.54mm W x 10.7mm D)
Weight 8.82 oz (250g) (with embedded battery)
Display 6.7 in color Full High Definition+ (2400 x 1080); LED backlight; 450 Nits; dynamic 120Hz refresh rate
Touch Panel Multi mode capacitive touch with bare or light gloved fingertip input; water droplet rejection, Oleophobic coating
Power Service replaceable; rechargeable Li-Ion, PowerPrecision for real-time battery metrics;  Capacity: 4,750mAh/18.43Wh
Expansion Slot User-accessible MicroSD card; supports up to 2 TB
SIM Dual SIM (single Nano SIM and eSIM)
Network Connections WWAN; Wi-Fi, Bluetooth and NFC
Notifications Audible tone; vibration Audible tone; vibration
Keypad On-screen keypad
Voice and Audio Two microphones with noise cancellation; HAC compliant (North America); Dual Stereo speakers for loudness; High Quality stereophonic speaker phone; Bluetooth wireless headset support; PTT headset (Zebra USB-C) support; HD VoIP, Voice and Multimedia, supporting Super-wideband (SWB), Wideband (WB) and Full band (FB)
Buttons Volume up/down; Power (fingerprint biometrics). Programmable action buttons: Left - default to scan; Right - default to PTT; Top - default to camera
Interface Ports USB 3.1 (Bottom Type C) — SuperSpeed (host and client); OTG/host charging mode



Data Capture

Scanning

 Camera-based scanning, leveraging Zebra’s advanced decoder library for accurate and efficient data capture — complimentary with the device
Camera Rear: 50 MP, Auto focus, OIS; ƒ/1.9, Video Recording Resolution: UHD 4K (3840x2160) @30fps, Front: 8 MP, ƒ/2.0, Video recording 1080P@30fps
NFC NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support VAS (Value Added Services) and Wallet support, Apple ECP1.0 and ECP2.0, Apple VAS and Google Smart Tap certified, VAS Library/SDK
Built-in RFID Short range integrated UHF RFID; 4 ft (1.2m) range, reads 20 tags per second; EU 865-868 MHz and US 902-928 MHz



Physical Characteristics

Dimensions 6.72 in L x 3.17 in W x .42 in D
(170.65mm L x 80.54mm W x 10.7mm D)
Weight 8.82 oz (250g) (with embedded battery)
Display 6.7 in color Full High Definition+ (2400 x 1080); LED backlight; 450 Nits; dynamic 120Hz refresh rate
Touch Panel Multi mode capacitive touch with bare or light gloved fingertip input; water droplet rejection, Oleophobic coating
Power Service replaceable; rechargeable Li-Ion, PowerPrecision for real-time battery metrics;  Capacity: 4,750mAh/18.43Wh
Expansion Slot User-accessible MicroSD card; supports up to 2 TB
SIM Dual SIM (single Nano SIM and eSIM)
Network Connections WWAN; Wi-Fi, Bluetooth and NFC
Notifications Audible tone; vibration Audible tone; vibration
Keypad On-screen keypad
Voice and Audio Two microphones with noise cancellation; HAC compliant (North America); Dual Stereo speakers for loudness; High Quality stereophonic speaker phone; Bluetooth wireless headset support; PTT headset (Zebra USB-C) support; HD VoIP, Voice and Multimedia, supporting Super-wideband (SWB), Wideband (WB) and Full band (FB)
Buttons Volume up/down; Power (fingerprint biometrics). Programmable action buttons: Left - default to scan; Right - default to PTT; Top - default to camera
Interface Ports USB 3.1 (Bottom Type C) — SuperSpeed (host and client); OTG/host charging mode



Performance Characteristics

CPU Qualcomm® 5430 Octa-core, 2.2 GHz
Operating System Android; for supported Android versions, visit:
www.zebra.com/android-versions
Memory 8 GB DDR5 RAM/128 GB UFS3.1 Flash

User Environment

Operating Temperature +32F to +122F (0C to +50C)
Storage Temperature -40F to +158F (-40C to +70C)
Humidity 5% — 95% non-condensing
Drop Specification 5 ft (1.5m) to tile over concrete across temperature (0C to +50C/+32F to +122F) with protective boot exceeding MIL-STD-810H; Multiple 4 ft (1.2m) to tile over concrete across temperature (0C to +50C/+32F to 122F) exceeding MIL-STD 810H
Tumble Specification 600 1.6 ft (0.5m) tumbles for device with protective case; 300 1.6 ft (0.5m) tumbles for device (1.6 ft/0.5m)
Sealing IP68 and IP65, with battery per applicable IEC sealing specifications
Vibration Sine: 4 g’s peak, 5hz to 2khz; Random:0.04 g²/hz, 20hz to 2khz
Thermal Shock -40F to +158F (-40C to +70C)
Electrostatic Discharge (ESD) +/-15 kV air discharge, +/-8 kV direct
discharge; +/-8 kV indirect discharge



Interactive Sensor Technology (IST)

Motion Sensor 3-axis accelerometer with MEMS Gyro
Light Sensor Automatically adjusts display backlight brightness
Proximity Sensor Automatically detects when the user places the device against head during a phone call to disable display output and touch input
Magnetometer eCompass to detect direction
Pressure Sensor Altitude detection for locating
